Electric Control Trailer Mounted K Span Roll Forming Machine For Arched Roof Panel

Electric Control Trailer Mounted K Span Roll Forming Machine For Arched Roof Panel

Main Specifications Of K Span Roll Forming Machine

• Thickness of sheet: 0.8-1.5mm
• Mounting dimension of K-Span Arch Roof Roll Forming Machine: 8900mmx2250mmx2300mm
• Total weight: about 13 Ton
• Forming Station: 17 stations
• Control system: electric control
• Main motor power: 17.7KW
• Forming Power is 7.5KW
• Curving motor power: 4KW
• Electric cutting motor power: 4kw
• Conical Power is 2.2KW
• Material of rollers: 45# steel, quenched HRC58-62
• Material of shaft: 45# steel, adjusted
• Material of cutting blade: Cr12 steel
• Quenching hardness: HRC58-60

Introduction

• The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding.
• It has the ability of strong loading and stable operation when running the machine.
• All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
• We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .

• Large-span forming machine is comprised of decoiler, forming machine, huydraulic cutting device, electric control system, hydraulic station, Generator fand unloading rack. All parts are mounted on a mobile trailer. So it is suitable for site working.

K-Span Profile Drawings

Applications

K Span arched roof, k span roofing, large span roof, no-girder roof panel

Our Advantages

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

Machine Pictures

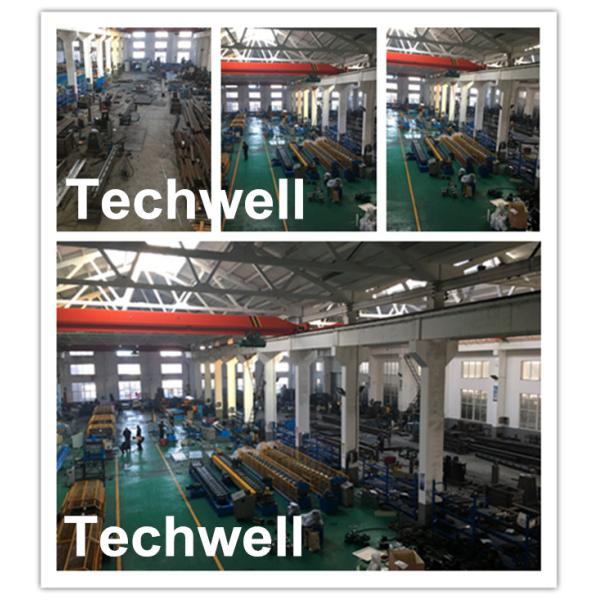

Factory Pictures
